J-3003A
Classification:
Flood lighting
Product Overview:
● The housing is made of ADC 12 aluminum and has good thermal conductivity●
The surface of the shell adopts AkzoNobel brand powder coating, which has strong corrosion
resistance● The bottom of the heat sink reprocessed by CNC after powder coating is flat, and the PCB is completely overlapped, and the heat dissipation is better
● The lamp adopts tempered glass + PC lens design, with independent drive gearbox, and the IP protection is more reliable
● All exposed screws are made of 304# stainless steel for high corrosion resistance
● All materials are in line with EU CE/RoHS standards
For more information, please contact us directly by phone or email
Enquiry- 產品描述
- Product detail
- Technical parameter
-
- Commodity name: J-3003A
- Commodity ID: 1196370357045055488
- Watt: 50W - 300W
Product Overview:
● The housing is made of ADC 12 aluminum and has good thermal conductivity●
The surface of the shell adopts AkzoNobel brand powder coating, which has strong corrosion
resistance● The bottom of the heat sink reprocessed by CNC after powder coating is flat, and the PCB is completely overlapped, and the heat dissipation is better● The lamp adopts tempered glass + PC lens design, with independent drive gearbox, and the IP protection is more reliable
● All exposed screws are made of 304# stainless steel for high corrosion resistance● All materials are in line with EU CE/RoHS standards
-

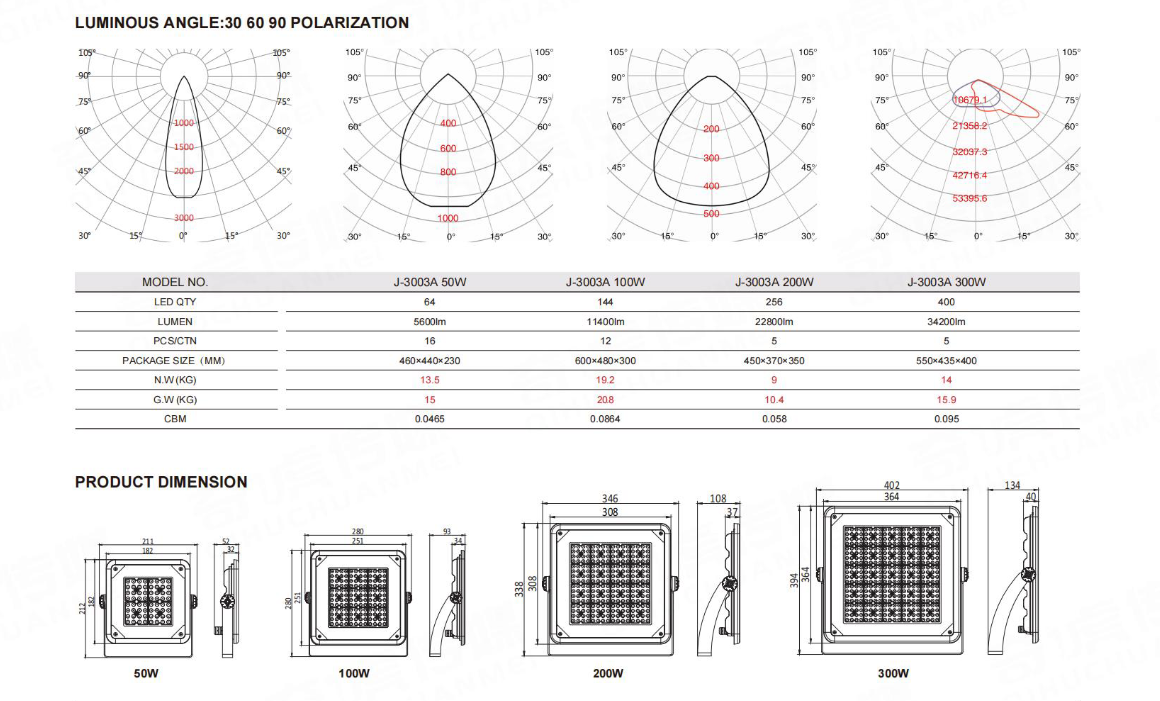

Nominal power: 50W 100W 200W 300W
Input voltage: 200-254VAC 50/60Hz
CCT: 3000K / 4000K / 5000K /5700K
CRI: > 70Ra / 80 Ra Efficacy: 110-120lm/ W
LED Brand: Hongli 2835
Surge protection: 100-300W 10KA
Operation temperature: -30 to + 50℃
IP Grade: IP65 IK08
Warranty > 3 years (under normal circumstances)
-
